DIAMOND CYLINDER MILLING BIT - 1" 25mm

TroxellUSA Pro-Grade Milling Bit

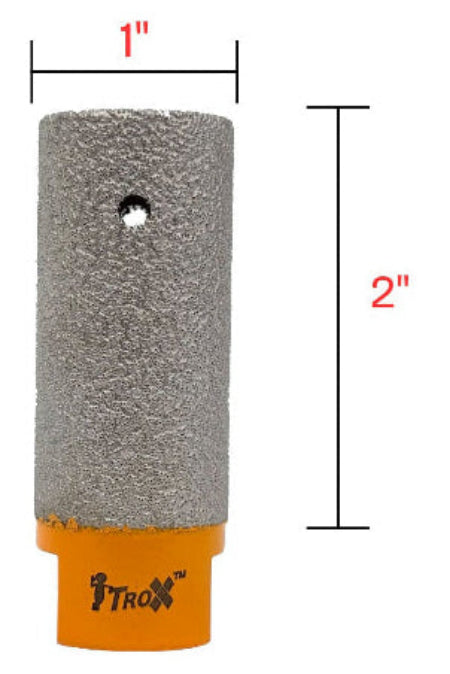

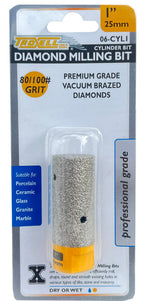

1" 25mm Diamond Milling Bit

SKU# 06-CYL1

Engineered with premium grade vacuum brazed diamonds, this cylinder shaped bit is ideal for shaping, enlarging, beveling, and smoothing existing holes in tile, stone, and masonry materials.

Key Features:

• Size: 1" (25mm) Cylinder Bit
• Grit: 80/100# – balanced for speed and control
• Materials: Suitable for use on porcelain, ceramic, glass, granite, and marble
• Dry or Wet Use: Designed to perform in either condition
• Thread Connection: 5/8"-11 Drill Compatible: Can be adapted using TroxellUSA adapters 21-600A OR 21-600Q (sold separately)
• RPM Range: Recommended RPM 6,000 | Max RPM 11,000
• Common Use Case: Perfect for prepping toilet flange holes, shower valves, and pipe penetrations where clean hole shaping is essential
• Safety First: Use with ANSI-approved eye protection and gloves

Note: This bit is designed for shaping and enlarging pre-existing holes. It does not drill new holes.

Need a different size?

[Click here to view all available sizes of our diamond milling bits.]
